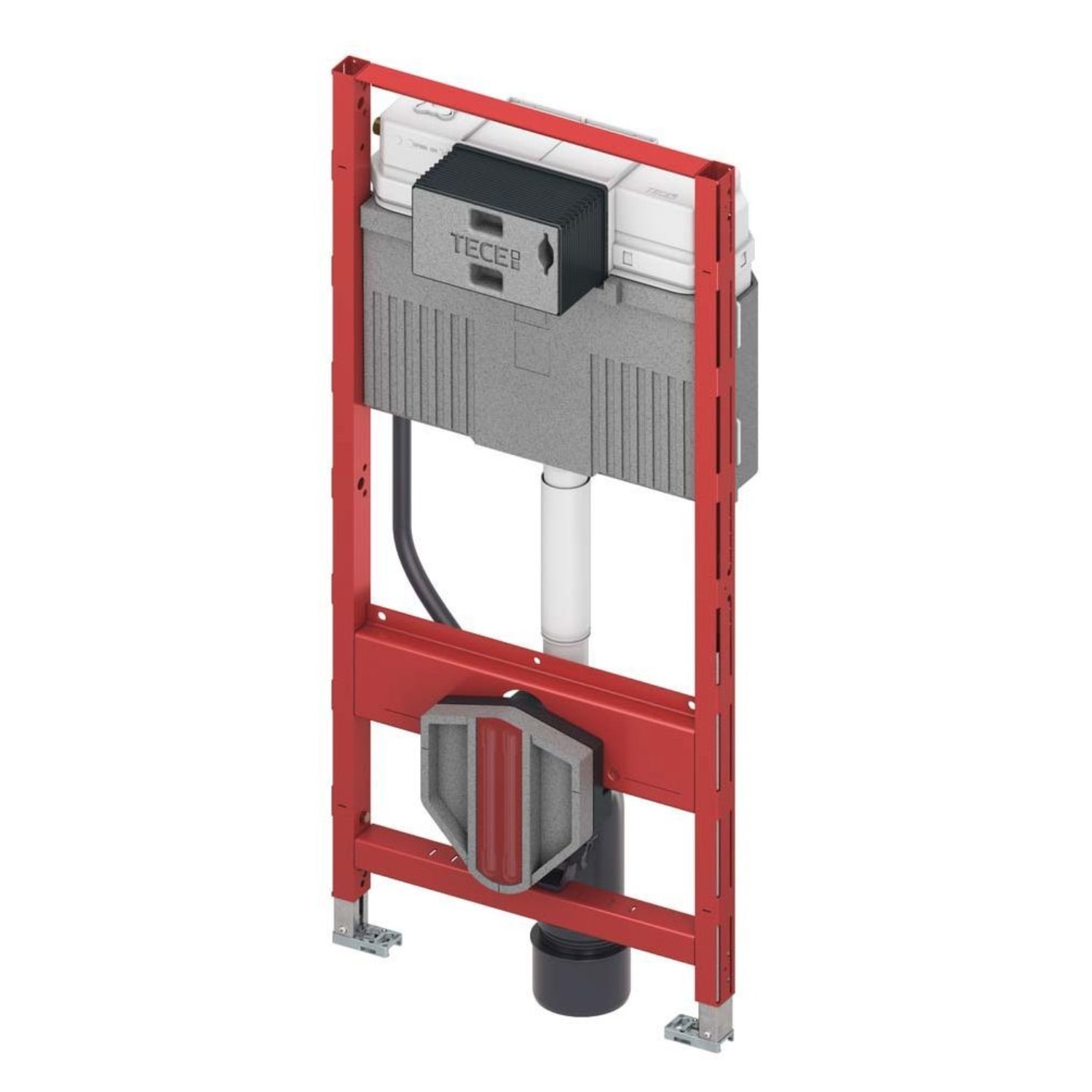

TECE WC module 9300300 for attachment to TECEprofil tubes or for installation in metal or wooden stud walls and as a pre-wall or corner module also suitable for single block assembly for WC fittings and TECE – Betätigungsplatten completely pre-assembled unit TECE UP cistern for front actuation. Safety tank made of plastic Cistern completely pre-assembled and sealed 2000 with match2 / 2 “F. 10 l tank volume 6 l preset standard flush volume 4th 5/7 5/9 l flush volume optionally adjustable at any time 3 l partial flush with dual flush technology Remaining volume can be used for immediate cleaning rinsing condensation insulated Can be used as a single or dual flush cistern depending on the flush plate tested according to DIN EN 14055 2000 fitting group according to DIN 4109 Low-noise hydraulic filling valve-L (ap) <= 17 dB ( A ) at 3 bar flow pressure Module consisting of a self-supporting assembly frame with a powder-coated surface two retaining bolts and nuts M 12 WC bend DN 90 with adapter DN 90/100 made of PP Transition piece also suitable for horizontal installation WC connection set DN 90 including safety protection plug Adjustment of a raised ceramic attachment for a seat height of 48 cm possible according to DIN 18040
